VULCAN 3015EX: Fast, Precise, Energy-Saving Metal Laser Cutter

Basic Specifications	Options
Work area	1500*3000mm
Laser	nLIGHT(USA) 500W~12KW
Laserhead	Raytools(SWISS)
Controller	Dedicated controller
CAM	Steel plate processing program
System	High inertia servo motor system
Axis driving method	Rack&pinion
Max ACC.	2.5G
Max. cutting speed	100000mm/min
Position precision	±0.1mm/3,000mm
Repetition precision	±0.03mm
Power supply	AC380V, 220V 60Hz

Request a Consultation

Get a Consultation Now

Share:

Detailed Description

Equipment Features

VLUCAN 3015EX aims for efficient continuous processing of 3000*1500 plate materials with a cover-type design for user safety and an interchangeable work table.
The high-rigidity main frame structure guarantees strong durability and minimizes vibration during high-speed machining.:
The lifetime of the laser oscillator is almost semi-permanent at 100,000 hours, and it has a structure that does not require a separate constant temperature and humidity room, enabling efficient use.
It is possible to cut highly reflective and highly difficult materials that were impossible with existing Co2 equipment.
(Aluminum, copper-based, silver, etc.) Compared to existing Co2 equipment, it can operate with only about 30% of the power consumption based on the same power, and with a beam transport structure that does not require a mirror, there is no maintenance and the cost of consumables is drastically reduced, resulting in dramatic productivity. Increased effect can be expected.

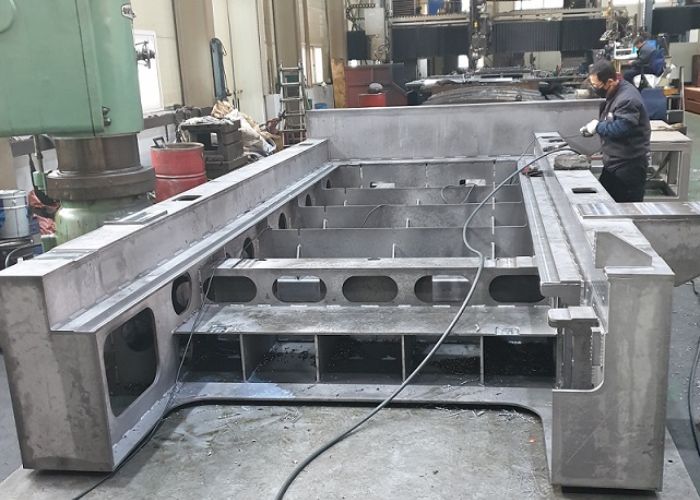

Application of high rigidity frame

Vibration was minimized by applying a high-rigidity main frame, and distortion was prevented through a heat treatment process at 1100 degrees for 20 hours.

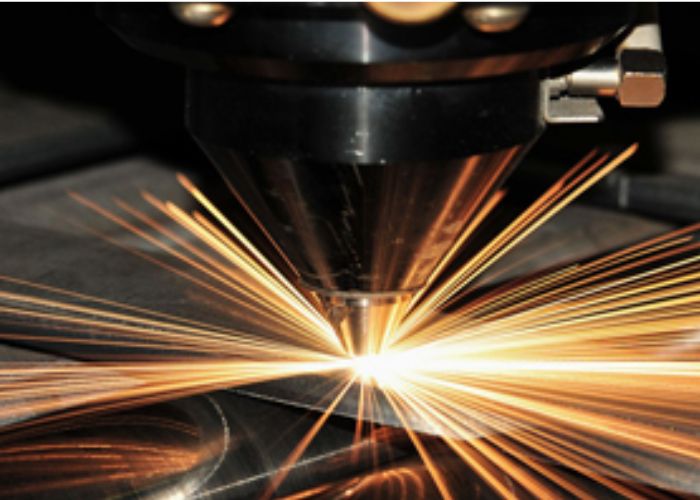

Excellent cutting performance

It boasts superior cutting performance and cutting speed compared to existing CO2 lasers. In addition, the fiber laser has a lifespan of 100,000 hours, so maintenance costs are very low.

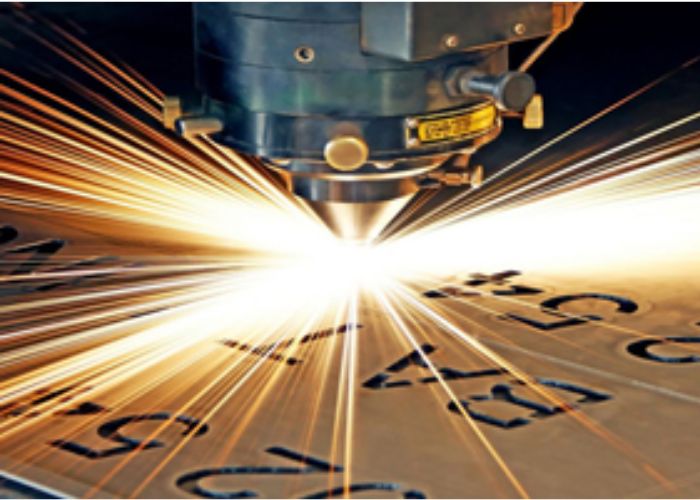

Highly reflective metal processing possible

The patented Fiber Laser technology fundamentally blocks the reflected light reflected from metal so that the laser generating device is not damaged, and materials that cannot be processed with conventional lasers, such as copper, aluminum, gold, silver, and brass, can be processed without damaging the equipment. do.

Applicable to various laser oscillators

Various laser oscillators can be applied with the desired configuration depending on the purpose of work, material characteristics, laser output, and manufacturer.

Option

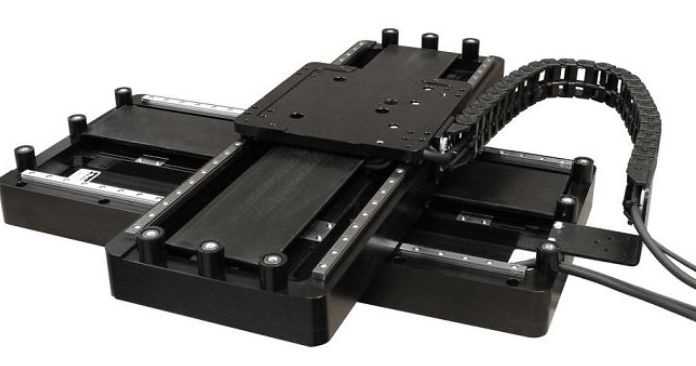

Linear Motor System selectable

Basically, Servo+Rack&Pinion System is applied
Linear Motor System can be selected and applied as an option.
When applying the linear system, there is no wear on the driving part and more precise machining is possible.

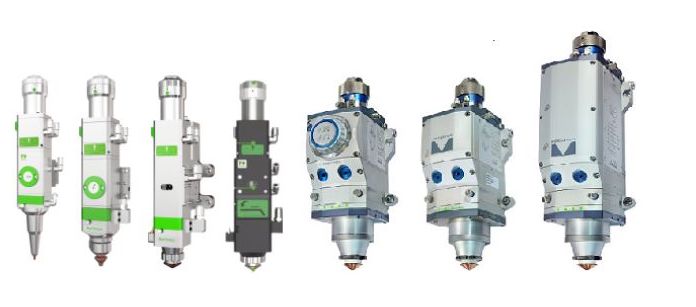

Head for fiber can be selected

The laser head must be applied according to the purpose of work, the characteristics of the material, and the laser power.
Dedicated laser head is an important part, so it will be decided through consultation.

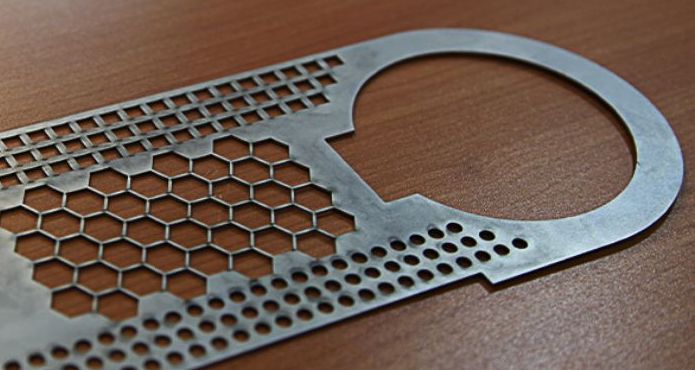

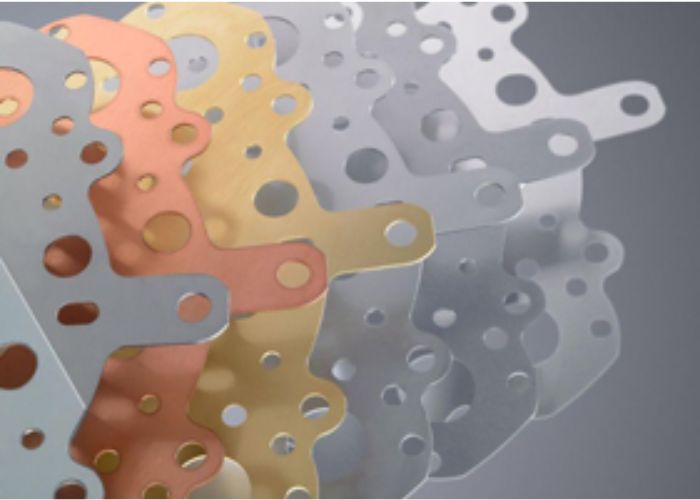

Material Processing Sample

metal

non-ferrous metal

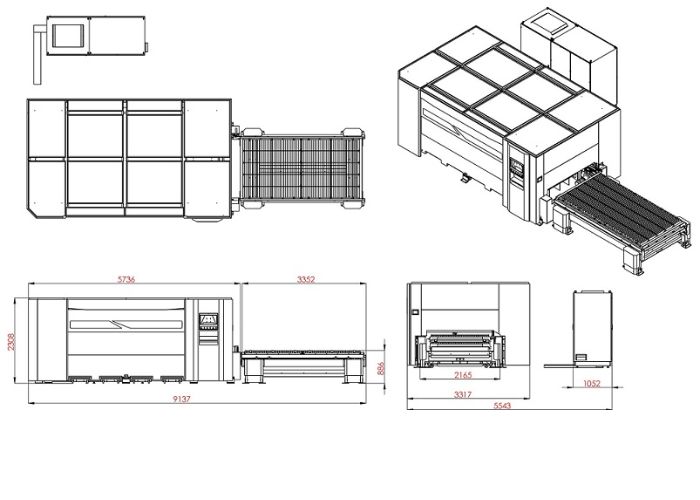

Outline drawing and size

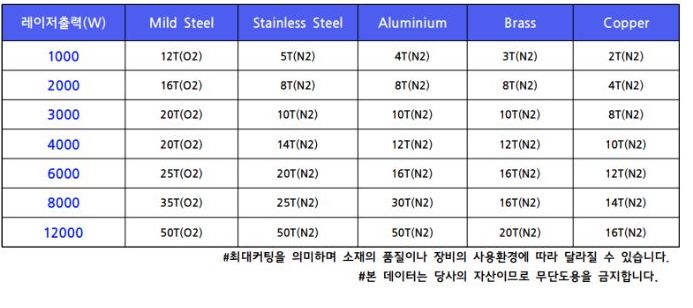

Cutting Capacity

# It means the maximum cutting and may vary depending on the quality of the material or the usage environment of the equipment.

#This data is our property, so unauthorized use is prohibited.
