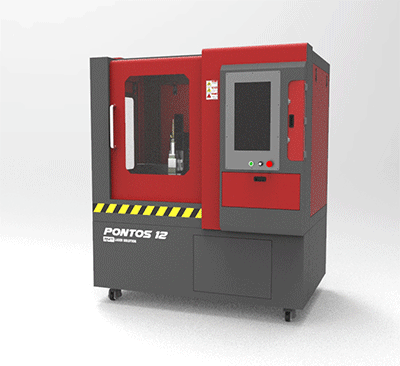

Pontos Metal Laser Cutter: Precision

Basic Specifications	Options
Work area	300x300 / 600x600 mm
Laser	nLIGHT(USA) 500W~2KW
Laserhead	Raytools(SWISS)
Controller	dedicated controller
CAM	Steel plate processing program
System	High inertia servo motor system
Axis driving method	Rack&pinion
Max ACC.	Steel plate processing program
Max. cutting speed	High inertia servo motor system
Position precision	±0.1mm/3,000mm
Repetition precision	±0.03mm
power supply	AC380V or 220V 60Hz

Request a Consultation

Get a Consultation Now

Share:

Detailed Description

Equipment Features

The Pontos Series is a machine designed to reasonably respond to the needs of manufacturing small/precision metal workpieces.
Non-ferrous special metals such as copper, brass, bronze, tungsten, silver and gold can also be processed.
In particular, it efficiently supports rapid sample production and product production in universities, laboratories, corporate research centers, and precious metal processing companies.
Linear drive system can be adopted as an option, and various elements necessary for user safety such as safety full cover and special coated glass are included.
Various functional options such as automatic clamping and automatic roll material feeder are available.

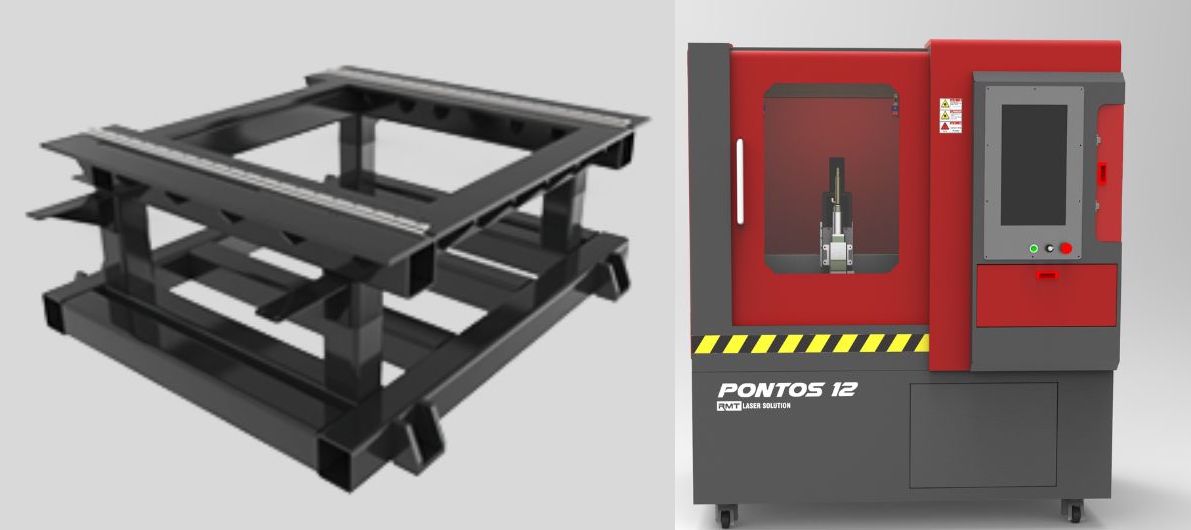

Application of high rigidity frame

Vibration was minimized by applying a high-rigidity main frame, and distortion was prevented through a heat treatment process at 1100 degrees for 20 hours.

Safe full cover application

It has a shielding cover to block the laser beam reflected from the processing material, so it can be used safely.
Non-ferrous special metals such as copper, brass, bronze, tungsten, silver and gold can also be processed

Highly reflective metal processing possible

The patented Fiber Laser technology fundamentally blocks reflected light reflected from metal.
Conventional materials such as copper, aluminum, gold, silver, and brass without damaging the laser generator.
Materials that cannot be processed with a laser can be processed without damaging the equipment.

Applicable to various laser oscillators

Various laser oscillators can be applied with the desired configuration depending on the purpose of work, material characteristics, laser output, and manufacturer.

Option

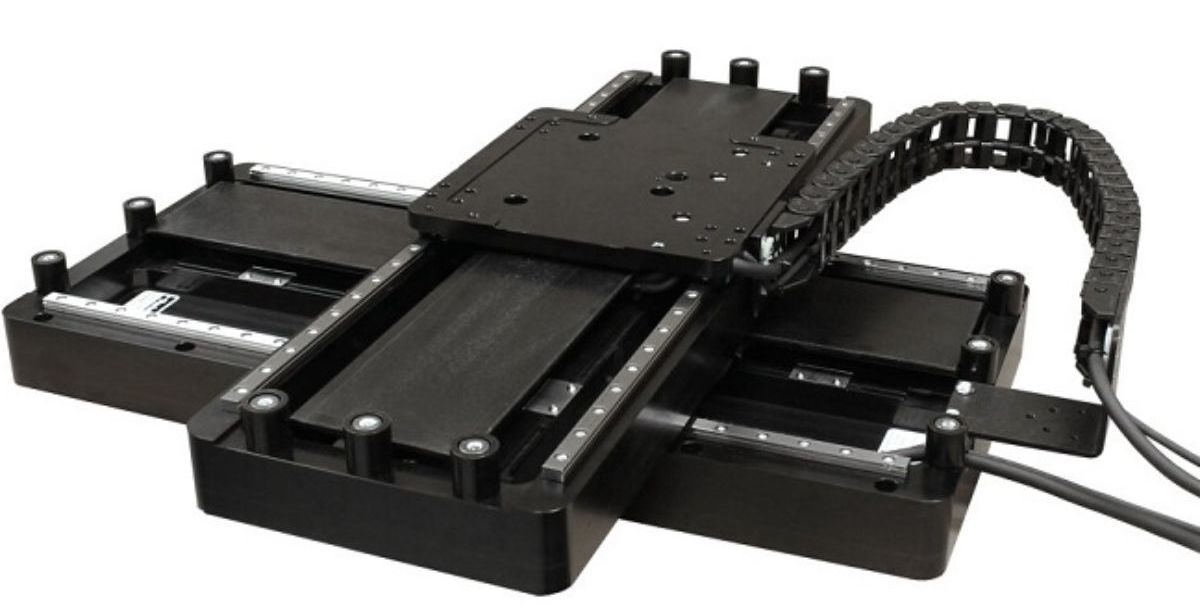

Linear Motor System selectable

Basically, Servo+Rack&Pinion System is applied.
Linear Motor System can be selected and applied as an option.
When applying the linear system, there is no wear on the driving part and more precise machining is possible.

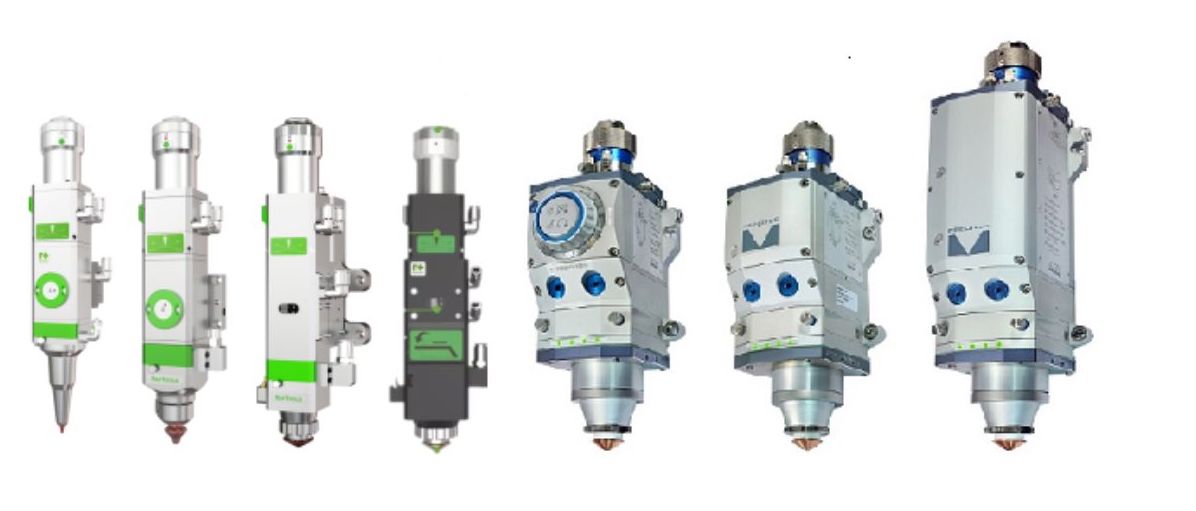

Head for fiber can be selected

The laser head must be applied according to the purpose of work, the characteristics of the material, and the laser power.
Dedicated laser head is an important part, so it will be decided through consultation.

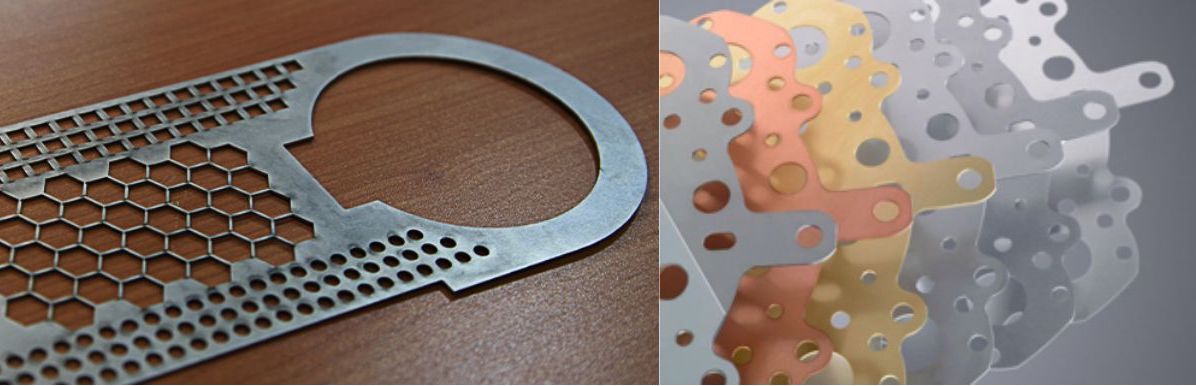

Material Processing Sample

metal non-ferrous metal
