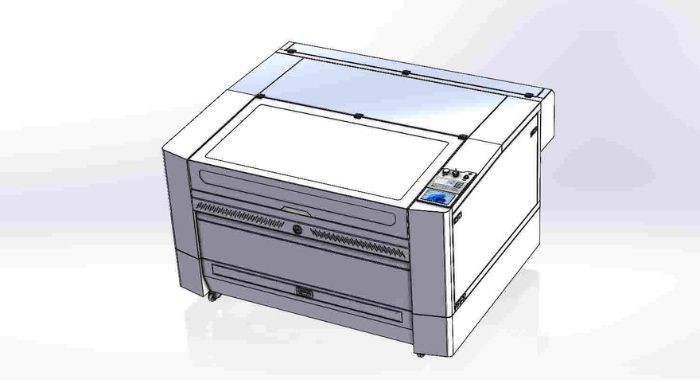

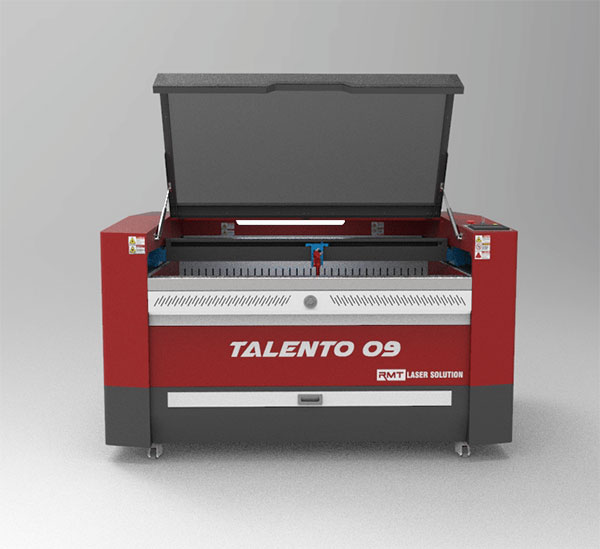

TALENTO9: Powerful Non-Metal Laser Cutter (2021)

Basic Specifications	Options
Work area	1300*900mm
Laser	DC 100~300W
Max processing speed	900mm/s
Resolution	0.003mm
CAM	Dedicated CAM program
Drive system	Micro Step Driver
Axis driving method	Timing Belt
Operating system	Windows
Input method	USB, Ethernet
Assist gas	Air
Vision recognition function
Fire detection safety device
Cutable material	wood, acrylic, cloth, paper, leather
Power supply	AC, 220V 50/60Hz 1P

Request a Consultation

Get a Consultation Now

Share:

Detailed Description

Equipment Features

TALENTO9 is a 2021 all-new change model in which RMTECH's technology is concentrated, and it is a device with excellent performance and durability.
We make the most of our own design and production to the fullest and respond immediately to the functions requested by users.
It has a wide processing area (1300x900) corresponding to 4*8 width and is non-metal exclusive equipment capable of cutting and marking non-metal materials and marking metal materials.
RMTECH's patented beam integration technology was applied (option), and ACS (Anti Corrosion System) structure was adopted to protect equipment even in harmful gas operation.
High-rigidity frame structure maximizes precision and durability
Also, for the safety of users, it is designed to prevent the risk of fire by cutting off the laser power when a fire is detected during operation.
The laser oscillator can be selected from CO2 laser 40W to 400W depending on the purpose of work.
Direct design! domestic production! The TALENTO series is designed and produced directly at the RM Tech factory in Yongin Techno Valley Industrial Complex, Gyeonggi-do.
It is a domestic product that is different in quality and follow-up management from Chinese products that are simply imported and sold in the market under the name of OEM production.

Application of ACS System

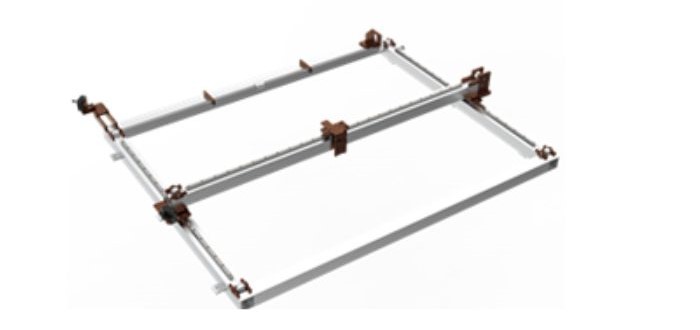

Vibration was minimized by applying a high-rigidity main frame, and distortion was prevented through a heat treatment process at 1100 degrees for 20 hours.

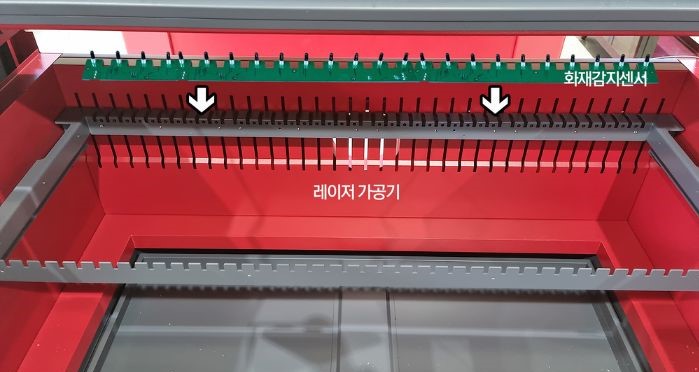

Fire detector

If a fire is detected during operation, the laser power is cut off to prevent the risk of fire. (Fire detection device patent)

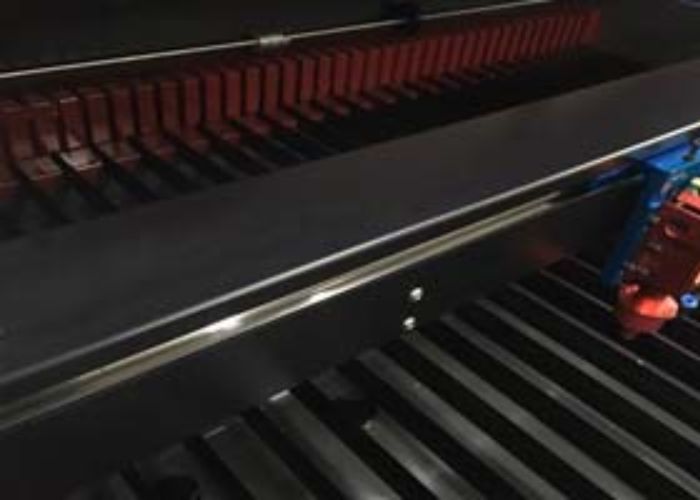

By applying a high-rigidity main frame, vibration is minimized and precision and durability are maximized.

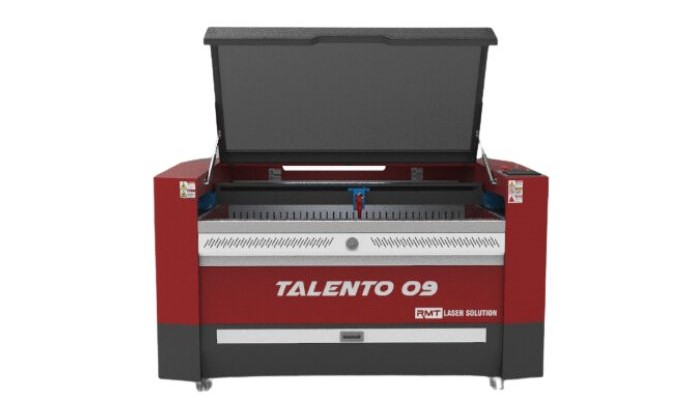

Safety cover applied

A safety cover is attached to the front of the processing area, so you can safely check the work progress.
Operation can be set to stop when the safety door is opened

Dual wide display

For user's convenience, the existing DSP panel has been upgraded to reduce inconvenience in operation and to make work easier by embedding a PC for operating the equipment.

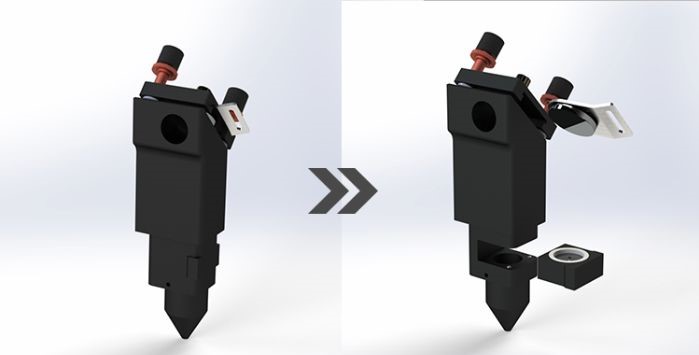

When replacing lenses and mirrors, the Open-Closed method is adopted to minimize cumbersome work and increase convenience.

Option

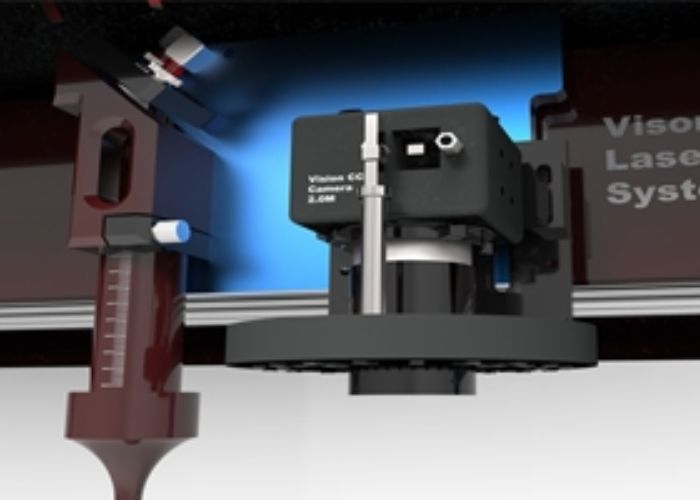

CCD automatic recognition cutting

After using a CCD camera and a dedicated program to print actual images, the image is recognized and precise cutting is performed.
available as an option

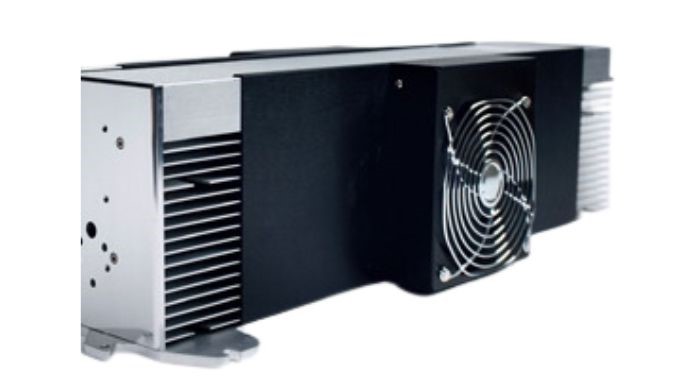

RF Co2 Laser selectable

Basic application of DC type glass tube CO2 laser,
RF type laser can be selected according to customer's request.

Material Processing Sample

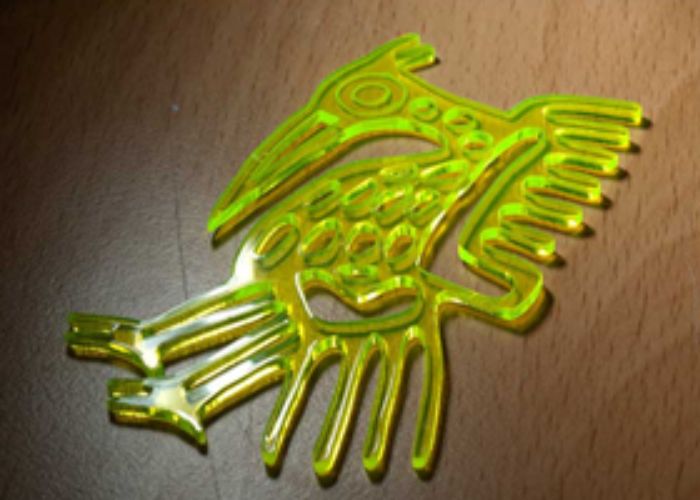

acryl

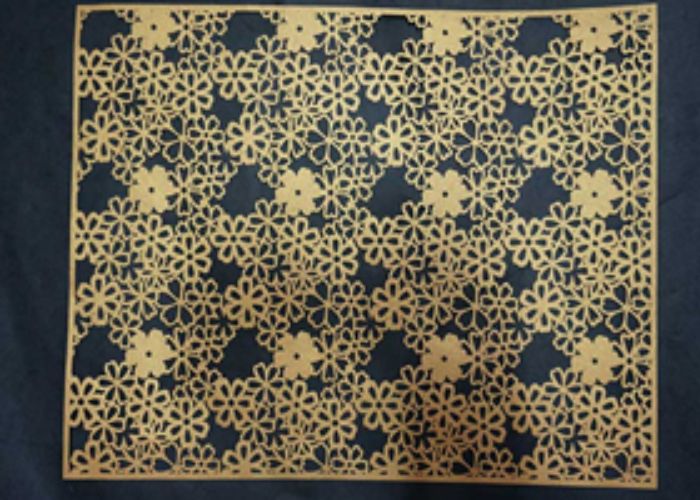

paper (Korean paper)

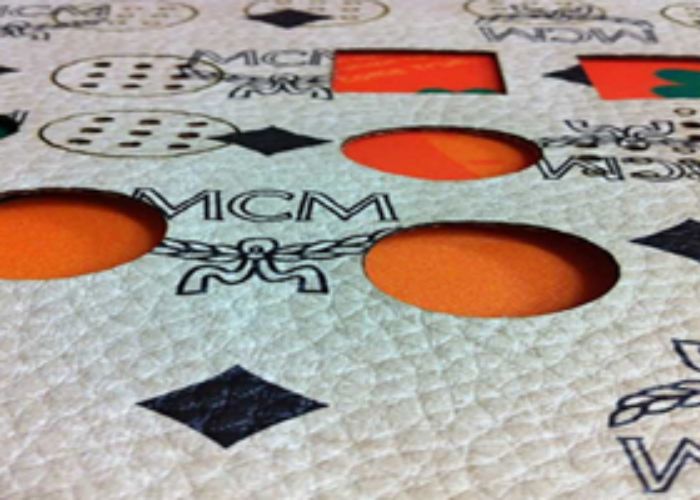

leather and fabric

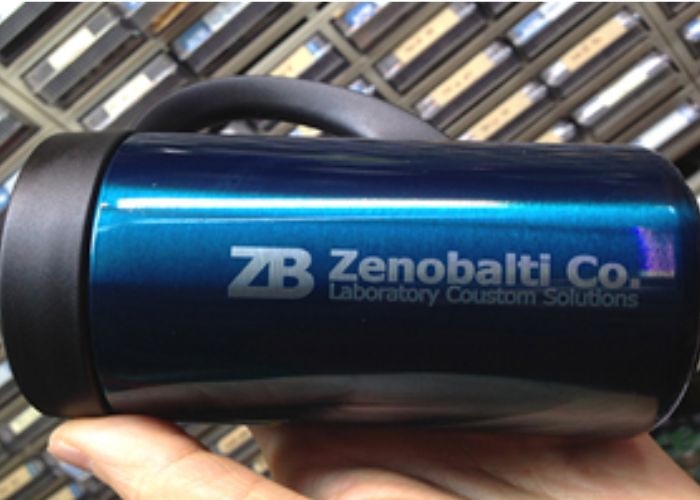

metal marking

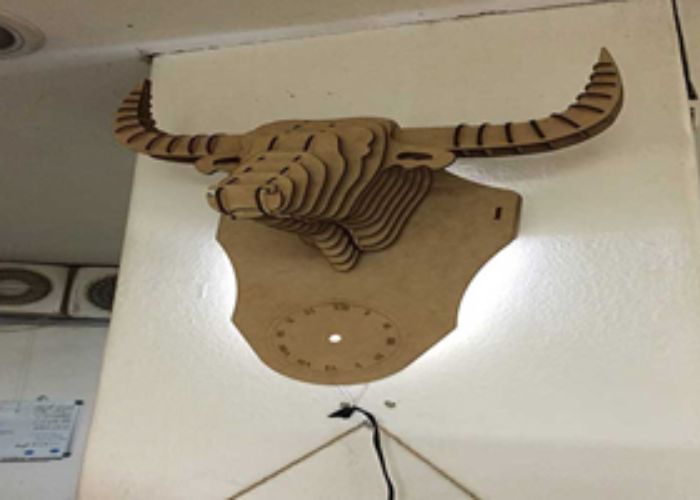

wood

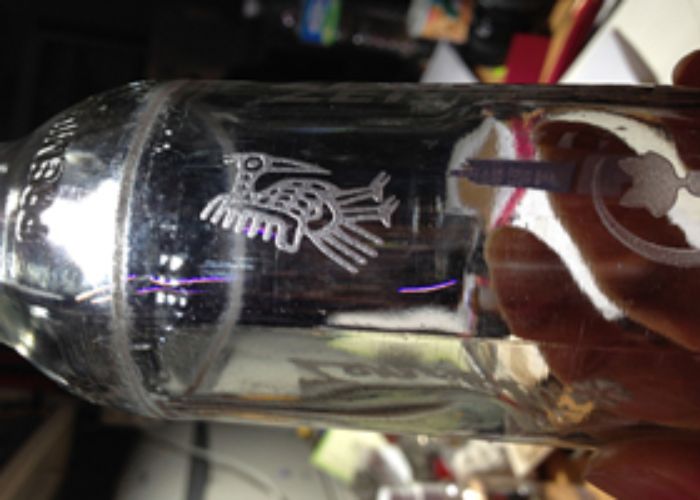

glass marking
