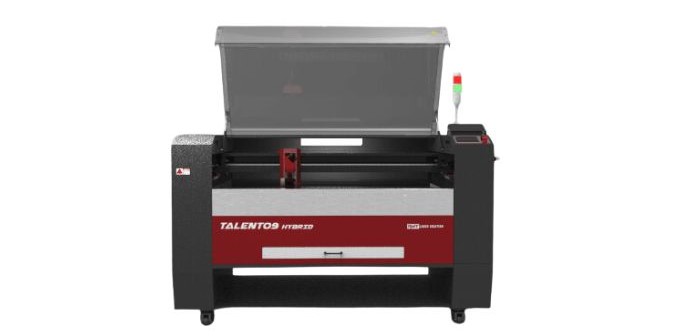

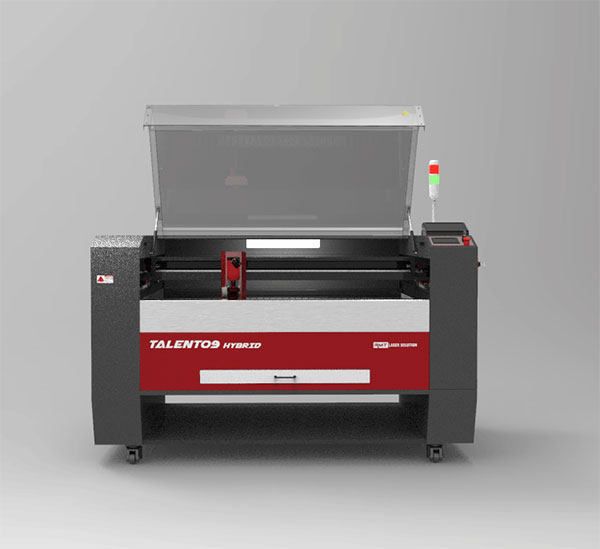

TALENTO9 hybrid: Metal & Nonmetal Laser Cutter

Basic Specifications	Options
Work area	1300*900mm
Laser	DC 300W
Max processing speed	900mm/s
Resolution	0.003mm
CAM	Dedicated CAM program
Drive system	AC Servo System
Axis driving method	Ball Screw
Operating system	Windows
Input method	USB, Ethernet
Assist gas	Air, Oxigen
Fire detection safety device
Cuttable material	Wood, Atrile, Cloth, Paper, Mild steel, Stainless steel
Power supply	AC 220V 50/60Hz 1P

Request a Consultation

Get a Consultation Now

Share:

Detailed Description

Equipment Features

TALENTO9 hybrid is a 2021 all-new change model in which RMTECH's technology is concentrated. It is a metal-nonmetal combined equipment capable of cutting and marking non-metal materials as well as some metal processing such as carbon steel and stainless steel.

It has a wide processing area (1300x900mm) corresponding to the 4*8 width and maximizes precision and durability with a high-rigidity frame structure.:

RMTECH's patented beam integration technology is applied (option), and ACS (Anti Corrosion System) structure is adopted to protect the instrument from harmful gas operation.

For the safety of the user, it is designed to prevent the risk of fire by cutting off the laser power when a fire is detected during operation.

CO2 laser 150W~300W (DC TYPE), up to ~650W (RF TYPE) can be selected according to the purpose of the laser oscillator.

We make the most of our own design and production to the fullest and respond immediately to the functions requested by users

Direct design! domestic production! The TALENTO series is designed and produced directly at the RM Tech factory in Yongin Techno Valley Industrial Complex, Gyeonggi-do.

It is a domestic product that is simply imported in the name of OEM production and is on a different level from Chinese products sold on the market in terms of quality and follow-up management.

Application of ACS System

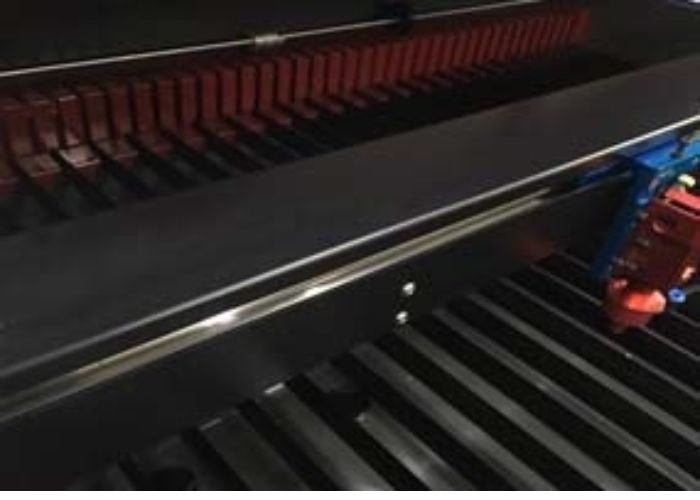

Vibration was minimized by applying a high-rigidity main frame, and distortion was prevented through a heat treatment process at 1100 degrees for 20 hours.

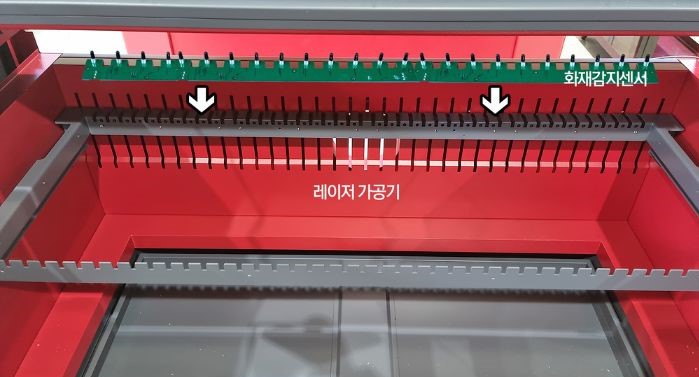

Fire detector

If a fire is detected during operation, the laser power is cut off to prevent the risk of fire. (Fire detection device patent)

Safety cover applied

A safety cover is attached to the front of the processing area, so you can safely check the work progress.
When the safety door is opened, the operation can be set to be regular.

Dual wide display

For the user's convenience, the existing DSP panel has been upgraded to reduce inconvenience in operation and to make work easier by embedding a PC for operating the equipment.

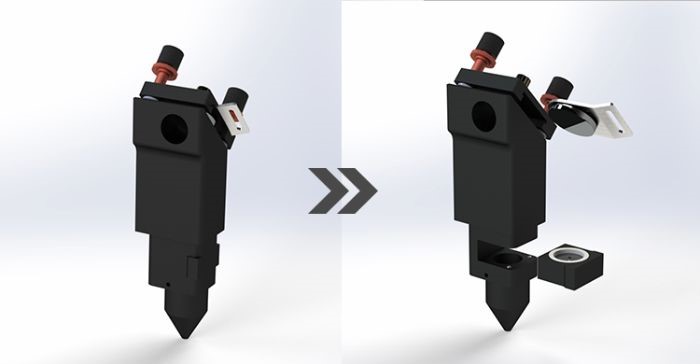

When replacing lenses and mirrors, the Open-Closed method was adopted to minimize cumbersome work and increase convenience.

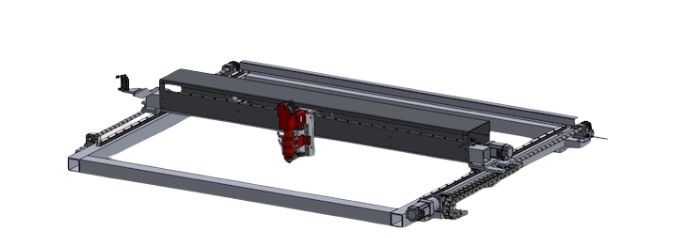

By applying high-rigidity main frame and ball screw, vibration is minimized and high precision and durability are maximized.

Option

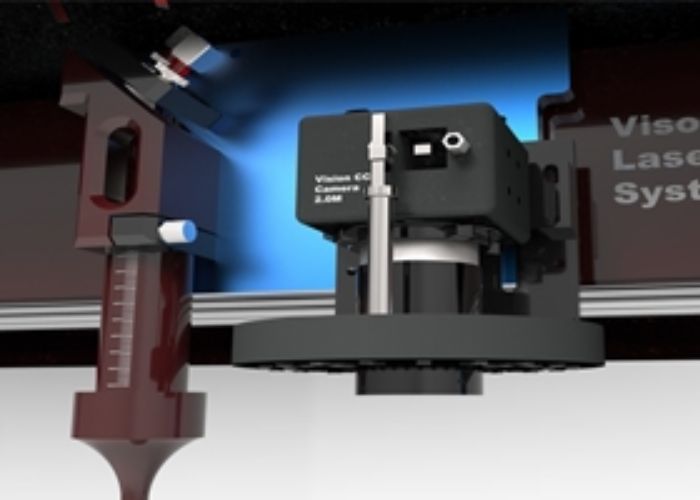

CCD dome automatic recognition cutting

After using a CCD camera and a dedicated program to print actual images, recognize the images to perform precise cutting.
available as an option

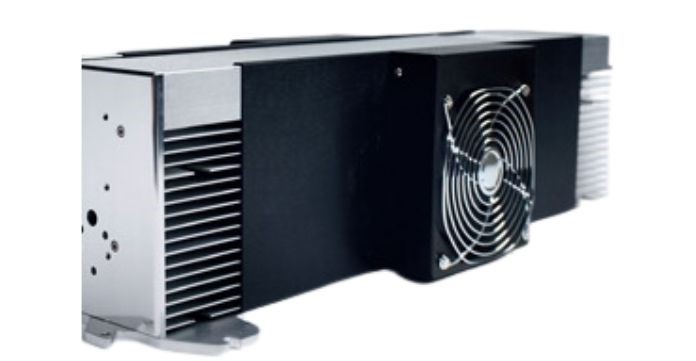

RF Co2 Laser selectable

Basic application of DC type glass tube CO2 laser,
RF type laser can be selected according to customer's request.

Material Processing Sample

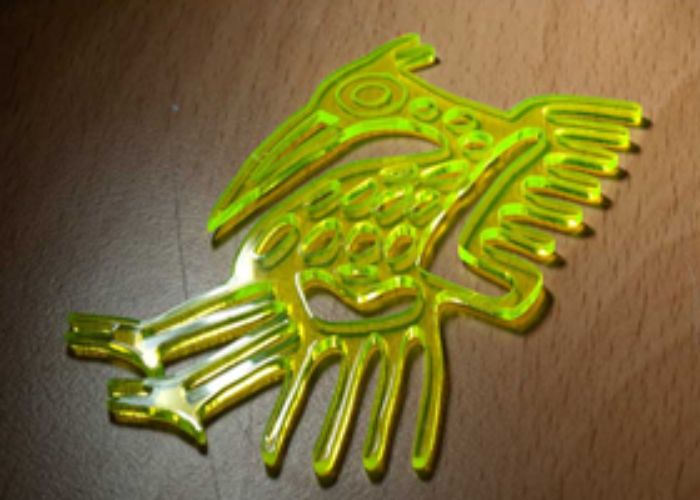

acryl

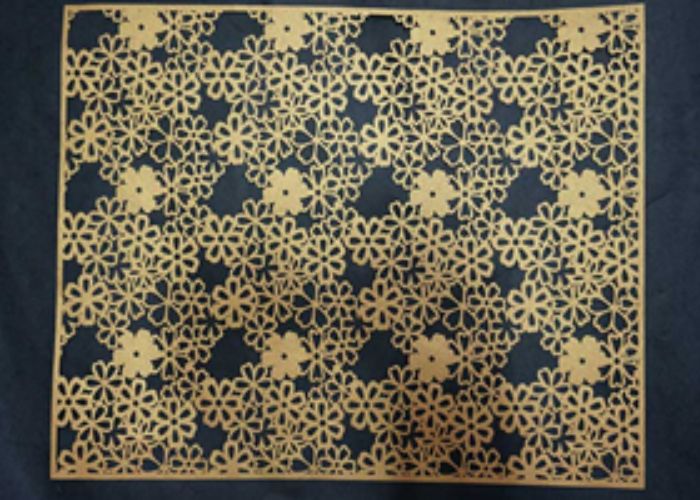

paper (Korean paper)

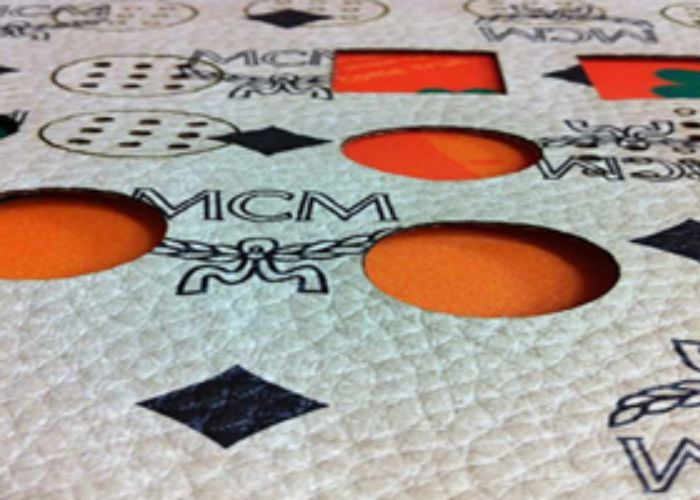

leather and fabric

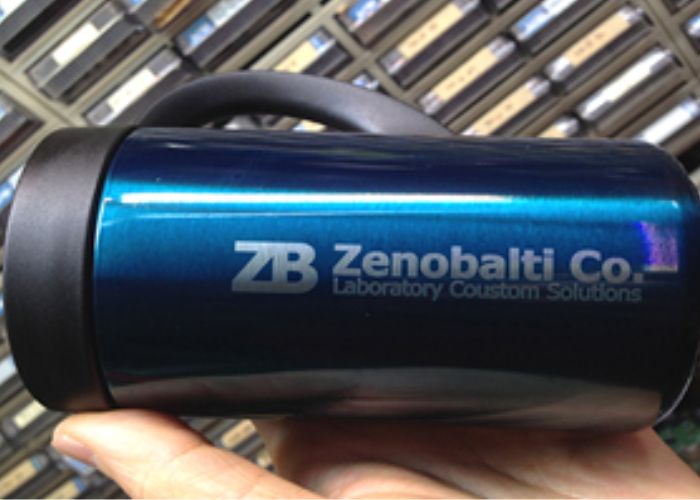

metal markin

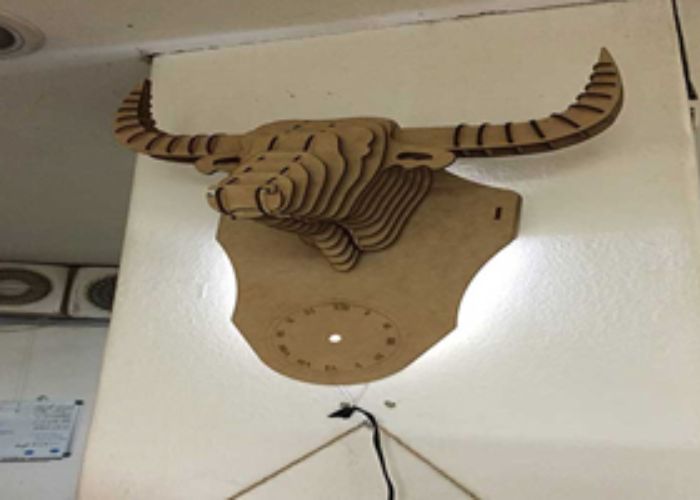

wood

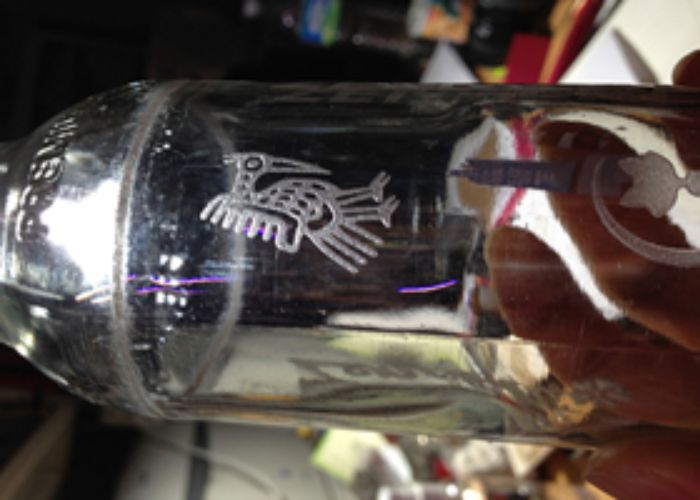

glass marking
