PRIMECUT22: Compact, Versatile CNC for Diverse Materials

Basic Specifications	Options
Work area	610610150mm
Spindle motor	High frequency spindle 800W ~ 5.5KW 24,000RPM
Drive	AC Servo motor
Aixs driving method	Ball screw / LM Guide
Max moving speed	12M/min
Repetition precision	0.05mm
Feed precision	0.03mm
CAM	Dedicated CAM program
Table	Aluminium T slot
Operating system	WIN10
Controller	Standard G code support, pre-processing simulation possible, various CAD/CAM support and compatible industrial control system application
Power supply	AC 220V 60Hz 1phase

Request a Consultation

Get a Consultation Now

Share:

Detailed Description

Additional Options

Customization by size is possible

Equipment Features

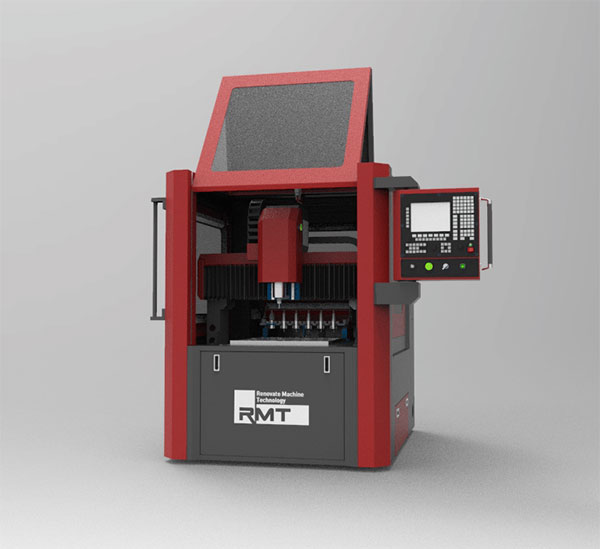

PRIMECUT22 is a compact CNC machine designed to be used in small indoor spaces such as makerspaces, research institutes, universities, laboratories, or small workshops.

Based on the frame heat treatment process and precision machining process through direct design, it has excellent precision and durability, and metal materials such as aluminum are also capable of precision/continuous machining.

Depending on the material to be processed, an appropriate spindle can be selected, and an efficient work space can be used by applying a gantry structure.

High-performance servo motors are adopted as standard and industrial controllers are adopted to maximize work stability and efficiency.

We can provide various types of processing JIG based on the processing DB for each material, and promise stable technical support until mass production through equipment installation and optimized training.

Direct design! domestic production! The PRIMECUT series is designed and produced directly at the RM Tech factory in Yongin Techno Valley Industrial Complex, Gyeonggi-do.

It is a domestic product that is simply imported in the name of OEM production and is on a different level from Chinese products sold on the market in terms of quality and follow-up management.

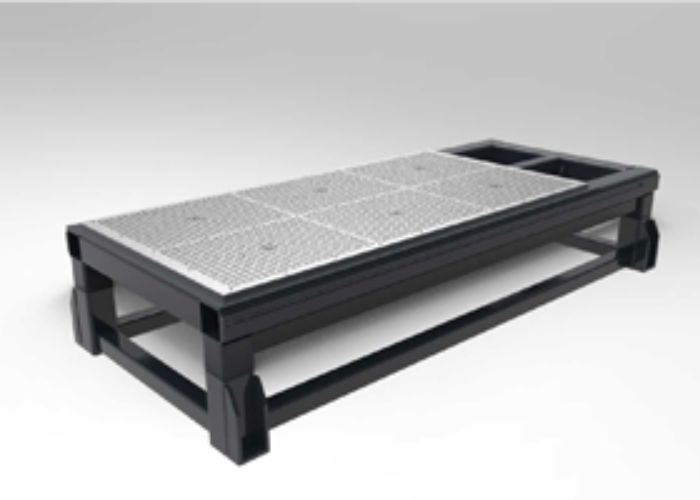

Excellent stability and durability by applying heat treatment bed and high-strength gantry structure.

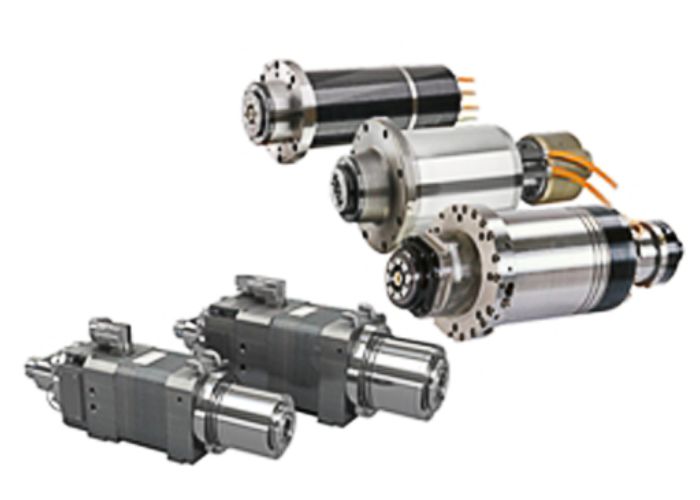

You can select a spindle that suits the characteristics of your work by torque, RPM, and output.

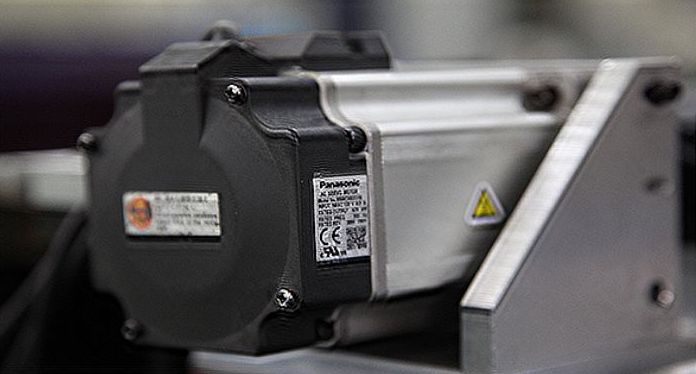

Precise machining is possible by using a high-quality precision motor

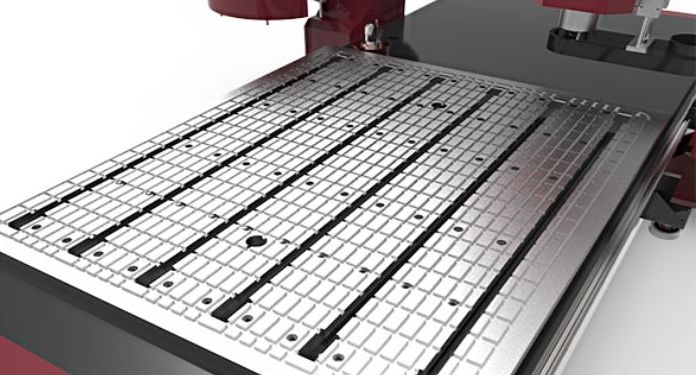

Basically, a T-slot bed is applied, and a vacuum clamping bed can be selected as an option.

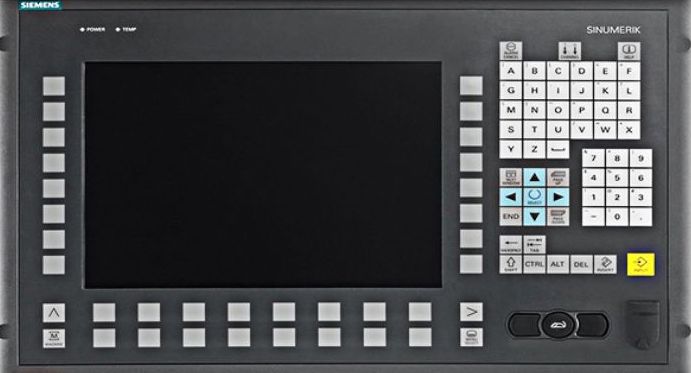

Productivity is maximized by applying industrial controllers, and high-performance controllers such as Siemens and Fanuc can be applied according to customer needs.
